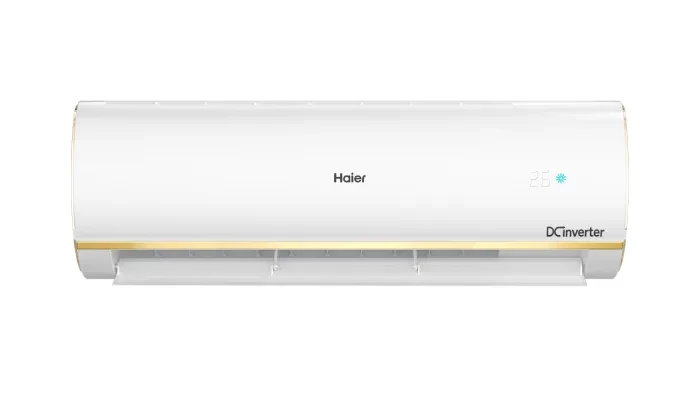

Haier 12000BTU Inverter Air Conditioner - R32

Capacity 100% Cooling 3470

50% Cooling 1735

Capacity Range (1670-3900)

Heating N/A

Frequency Full Load 56

Half Load 20

Electrical Rating Power Supply 230/Single/50

Power Input 100% Cooling 1155

Power Input 50% Cooling 415

Rated Current 100% Cooling 5.12

Rated Current 50% Cooling 2

ricity annual Consumption 697.66

Performance ISEER 3.85

Energy Star 3

Air circulation 700

Moisture Removal 1

Refrigerant R-22 / R-410 /R-32 R-32

Heat Exchanger Copper / PFC Copper

Noise level IDU Fan Speed T/H/M/L/Q 39/37/34/31/25

Refrigerant pipe Liquid side diameter 6

Gas side diameter 9

Max Length out-in 15

Max Height out-in 10

If the pipe length is more 5 meter, gas should be add as guidation 20g/m

If the pipe height out-in is more than 5m, oil trap shoud be installed as guidation V

Net Dimensions Width X Depth X Height 872*211*291

780*295*545

Net Weight Indoor Kg 9.5

Outdoor Kg 22.9

Groos Weight Indoor Kg 11.7

Outdoor Kg 25.2

Box Dimensions Width X Depth X Height 954*279*355

855*355*605

ECO Y

4WAY SWING Y

WIFI N

UV CLEAN N

Purifier-PM 2.5 N

Remote Y

Battery Y

Interconnecting wire Y
