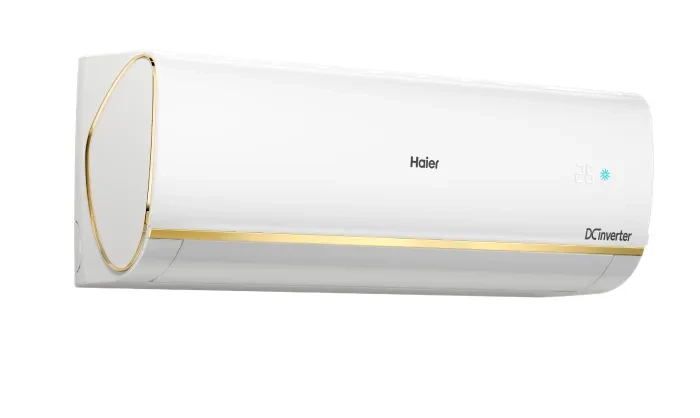

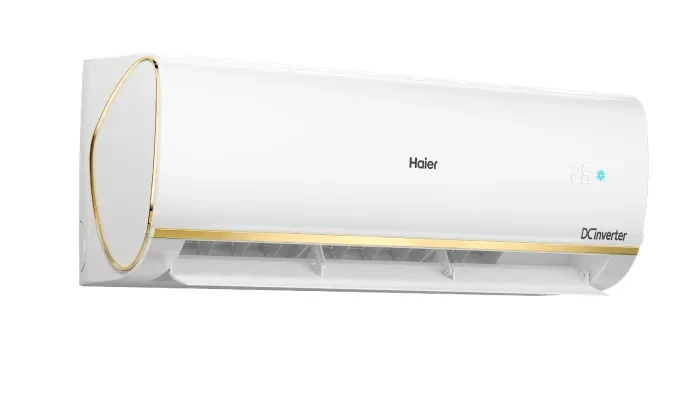

Haier 24000BTU Inverter Air Conditioner - R32

apacity 100% Cooling 6350

50% Cooling 3175

Capacity Range (1500-7000)

Heating NA

Frequency Full Load 79

Half Load 34

Electrical Rating Power Supply 230/Single/50

Power Input 100% Cooling 2095

Power Input 50% Cooling 765

Rated Current 100% Cooling 9.29

Rated Current 50% Cooling 3.7

ricity annual Consumption 1276.55

Performance ISEER NA

Energy Star NA

Air circulation 1200

Moisture Removal 1.7

Refrigerant R-22 / R-410 /R-32 R-32

Heat Exchanger Copper / PFC Copper

Noise level IDU Fan Speed T/H/M/L/Q 41/38/35/29

Refrigerant pipe Liquid side diameter 6

Gas side diameter 12

Max Length out-in 15

Max Height out-in 10

If the pipe length is more 5 meter, gas should be add as guidation 20g/m

If the pipe height out-in is more than 5m, oil trap shoud be installed as guidation V

Net Dimensions Width X Depth X Height 1008*225*318

860*345*550

Net Weight Indoor Kg 12

Outdoor Kg 34

Groos Weight Indoor Kg

Outdoor Kg

Box Dimensions Width X Depth X Height 1085*329*403

954*409*625

ECO N

4WAY SWING Y

WIFI N

UV CLEAN N

Purifier-PM 2.5 N

Remote Y

Battery Y

Interconnecting wire Y
